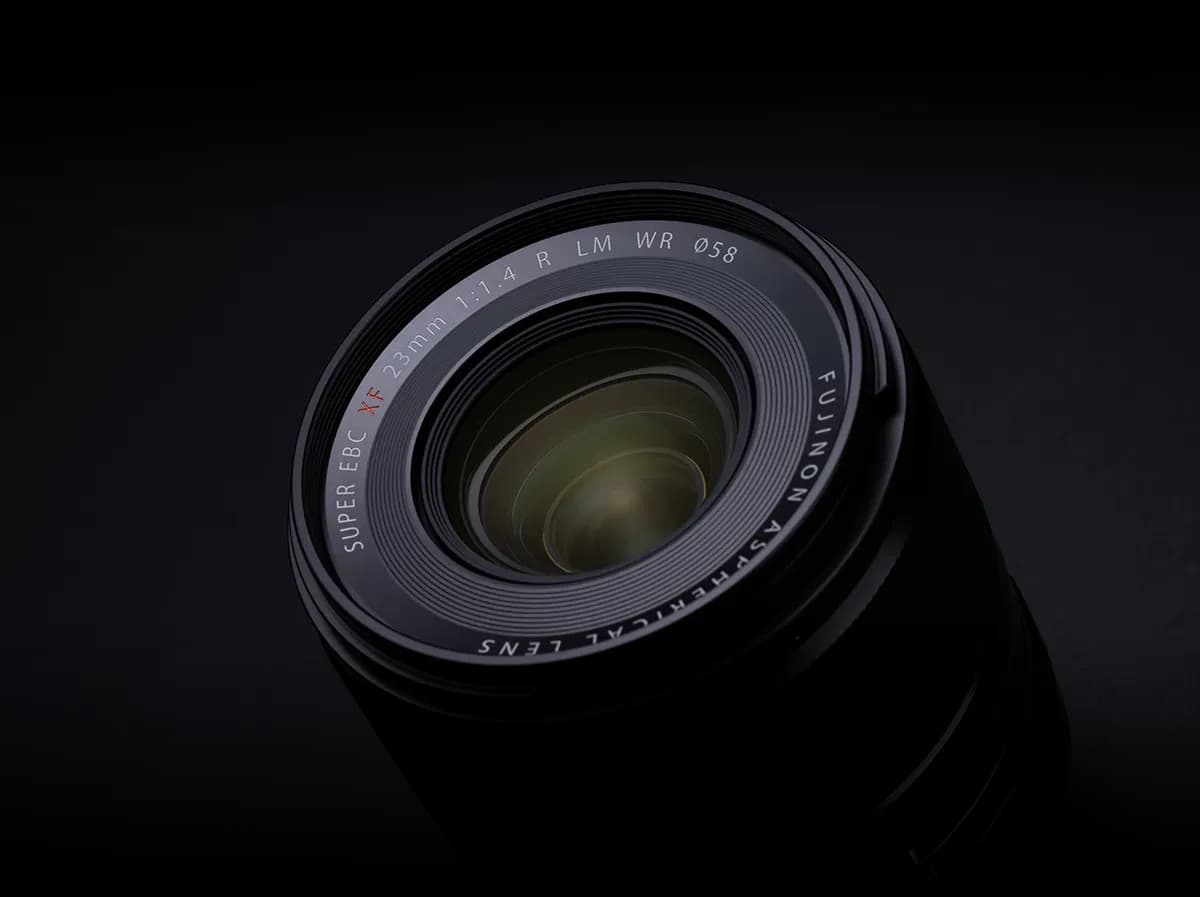

Fujifilm XF 23mm f/1.4 R LM WR.
Equivalent to 35mm full-frame on APS-C. Weather-sealed, fast-focusing, and the X-shooter's everyday environmental prime.
The Verdict.
Gavler Meta-Score
“The everyday X-mount 35mm-equivalent, finally done right: excellent center sharpness that holds toward the corners even at f/1.4, fast silent linear-motor AF, and weather sealing at 11 points the 2016 original lacked. It's bigger, heavier, and pricier than that old lens and vignettes heavily in RAW wide open, so existing 23mm owners may not need to upgrade — but for a first fast reportage prime, it's the one to buy.”
The Gavler Verdict
The Gavler Review.
Fujifilm XF 23mm f/1.4 R LM WR Review: Fast, Sealed, and Finally Sharp to the Edges
The Fujifilm XF 23mm f/1.4 R LM WR ranks number 9 on Gavler's Best Wide-Angle Prime Lenses list with an 8.2, and it fixes the two things X-system shooters complained about in the beloved 2016 original: no weather sealing and slow autofocus. Amateur Photographer found the autofocus "fast, decisive, accurate and quiet," and Cameralabs' hands-on comparison against both older 23mm options calls it "the best overall mild-wide-angle lens Fujifilm has produced for the X-system to date." The cost of that upgrade is real, though — it's bigger, heavier, and pricier than the lens it replaces.
What it is
Fujifilm's redesigned 23mm covers a 35mm-equivalent field of view at a fast f/1.4, built from 15 elements in 10 groups including two aspherical and three ED elements. The "LM WR" designation means linear-motor autofocus and weather resistance — sealing at 11 points, rated to operate down to -10°C, features the original 2013 XF 23mm f/1.4 never had. At 375g and with a 58mm filter thread, it's the middle sibling of Fujifilm's three 23mm lenses: heavier than the compact XF 23mm f/2 R WR (180g), but lighter than you'd guess given the added weather sealing and faster focus motor.
Cameralabs' direct comparison across all three 23mm options — the original 1.4, the compact f/2, and this WR version — found the new lens focuses closest of the three, at 19cm versus 22cm for the f/2 and 28cm for the original. At $899, it sits above the roughly $449 compact f/2 and close to what the original 23mm f/1.4 costs on the used market, which is the crux of the upgrade decision for existing owners.
In use
Sharpness is the clearest improvement over the lens it replaces. Amateur Photographer reports "central sharpness is excellent and there's impressively little fall off towards the corners, even at the widest aperture," and OpticalLimits independently confirms the lens is "perfectly usable straight from f/1.4, even in the image corners." Cameralabs' side-by-side testing makes the generational gap visible directly: shooting the new 23mm and the compact f/2 lens at their respective maximum apertures, the newer lens is "visibly crisper in the middle," and in the corners "the cheaper lens is noticeably softer... than its pricier and newer sibling."
Autofocus is where the "LM" designation pays off. Cameralabs' side-by-side focus testing found the linear motors "driving the focusing system quickly, quietly and confidently," with only a brief contrast wobble to confirm focus — versus audible motors on the decade-old original. Amateur Photographer's summary is direct: the lens "works superbly with" modern X-series hybrid AF systems, calling the focus "fast, decisive, accurate and quiet."
The honest weak spot is vignetting. OpticalLimits measured "a vignetting of ~2.3 EV (f-stops)" at f/1.4 in RAW files — heavy enough that they flagged it as "beyond our usual scale for APS-C cameras," even while noting a similar figure would be unremarkable on full-frame. In practice this mostly matters for RAW shooters who skip in-camera or Lightroom lens corrections; JPEG shooters get automatic correction by default.
Strengths
- Corner sharpness that holds at f/1.4. Both Amateur Photographer and OpticalLimits independently confirmed strong edge performance wide open — a real generational leap over the decade-old original.
- Fast, quiet linear-motor autofocus. Cameralabs' direct comparison found the new motor decisively faster and quieter than the original's, with acquisition Amateur Photographer measured around 0.04 seconds.
- Genuine weather sealing at 11 points. The original 23mm f/1.4 had none; this version is rated to -10°C, a meaningful upgrade for documentary and travel shooters who can't stop working when conditions turn.
The trade-offs — who should skip it
- Bigger, heavier, and pricier than the lens it replaces. Amateur Photographer states this plainly, and for existing XF 23mm f/1.4 R owners, the upgrade case rests on sealing and AF speed rather than a dramatic image-quality leap.
- Heavy RAW vignetting wide open. OpticalLimits' 2.3 EV figure is high even by fast-prime standards and will show up clearly if you shoot RAW without applying lens corrections.
- Not the smallest or cheapest option in Fujifilm's own 23mm lineup. The compact XF 23mm f/2 R WR remains a legitimate choice for anyone prioritizing size and lower cost over ultimate corner sharpness and low-light aperture.
How it compares
On the same Best Wide-Angle Prime Lenses list, the Nikon Z 24mm f/1.8 S ranks 8, one spot above the Fuji — a full-frame equivalent at a similar weight (450g) that Digital Camera World measured with "spectacular sharpness and contrast even at f/1.8," though OpticalLimits rates its corners the softest of Nikon's f/1.8 primes wide open. The Sony FE 20mm f/1.8 G at rank 10 covers a different, wider focal length but shares the Fuji's philosophy of packing pro-grade optics into a compact, weather-sealed body at a sub-$900 price.
Within Fujifilm's own system, the real comparison is internal: this lens against its own smaller, cheaper sibling. For a first fast 23mm on an X-T5 or X-S20, this WR version is the easy recommendation; existing 23mm f/1.4 owners have a harder call to make.
The Gavler verdict
An 8.2 for a lens that does exactly what a Mark II update should: it fixes the specific complaints — no sealing, slow AF — that held the original back, while genuinely improving corner sharpness in the process. Amateur Photographer and OpticalLimits agree the optics are excellent, and the recurring criticisms — heavy RAW vignetting and a size/price bump over the lens it replaces — are specific rather than fundamental. For X-system shooters buying their first fast 35mm-equivalent, it's the clear pick; current 23mm f/1.4 owners should weigh whether weather sealing and AF speed alone justify the upgrade.
Common Questions
For X-system shooters who want a fast, weather-sealed 35mm-equivalent, yes. Amateur Photographer found 'impressively little fall off towards the corners, even at the widest aperture,' and Cameralabs calls it 'the best overall mild-wide-angle lens Fujifilm has produced for the X-system to date.' It ranks number 9 on Gavler's Best Wide-Angle Prime Lenses list with an 8.2 at $899.
Not automatically. Amateur Photographer notes it's 'bigger, heavier and more expensive than the older XF 23mm F1.4 R it replaces,' and Cameralabs found the price difference between old and new was minimal at review time — meaning the upgrade case rests mainly on weather sealing and faster autofocus, not core image quality most owners will notice day to day.
More than typical for APS-C. OpticalLimits measured 'a vignetting of ~2.3 EV (f-stops)' at f/1.4 in RAW, noting that's 'normal on full-format cameras' but 'beyond our usual scale for APS-C cameras' — worth knowing if you shoot RAW and skip lens corrections.
Where to Buy.
Prices checked regularly
90-day price history
Price History
Steady at $899 for the entire 90-day tracking window — no increases, no discounts, across 91 tracked days.
Tracked daily across retailers. Vote Want itabove and we’ll alert you the moment the price drops.
Some links are affiliate links — Gavler may earn a commission. This never affects rankings or scores. Learn more.
Precision Engineering
Sharp to the Corners at f/1.4
Amateur Photographer found "impressively little fall off towards the corners, even at the widest aperture"; 15 elements in 10 groups (2 aspherical, 3 ED).
Linear-Motor Autofocus
AF acquisition around 0.04s — "fast, decisive, accurate and quiet" per Amateur Photographer — versus the slow, audible focus of the 2016 original.
Weather-Sealed at 11 Points
Dust- and moisture-sealed and rated to operate at -10°C, earning the "WR" the older 23mm f/1.4 never had.
Technical Specifications
The Scoreboard
Expert consensus (88) sits just under the community score (89): reviewers (Amateur Photographer, OpticalLimits) consistently praise the strong corner-to-corner sharpness at f/1.4, quick quiet LM autofocus, and added weather sealing, while the recurring knocks are heavy wide-open RAW vignetting (~2.3 EV) and that it's larger, heavier, and costlier than the original it replaces.
Cast Your Vote
Do you think Fujifilm XF 23mm f/1.4 R LM WR deserves the #9 spot in Best Wide-Angle Prime Lenses?
Global Critique
“Its central sharpness is excellent and there's impressively little fall off towards the corners, even at the widest aperture.”
“It works superbly with the XF 23mm F1.4 R LM WR. It's fast, decisive, accurate and quiet.”
“The light falloff in RAW mode is very heavy at f/1.4. A vignetting of ~2.3 EV (f-stops) may be normal on full-format cameras, but it's beyond our usual scale for APS-C cameras.”
“The XF 23mm F1.4 R LM WR is, however, bigger, heavier and more expensive than the older XF 23mm F1.4 R it replaces.”
