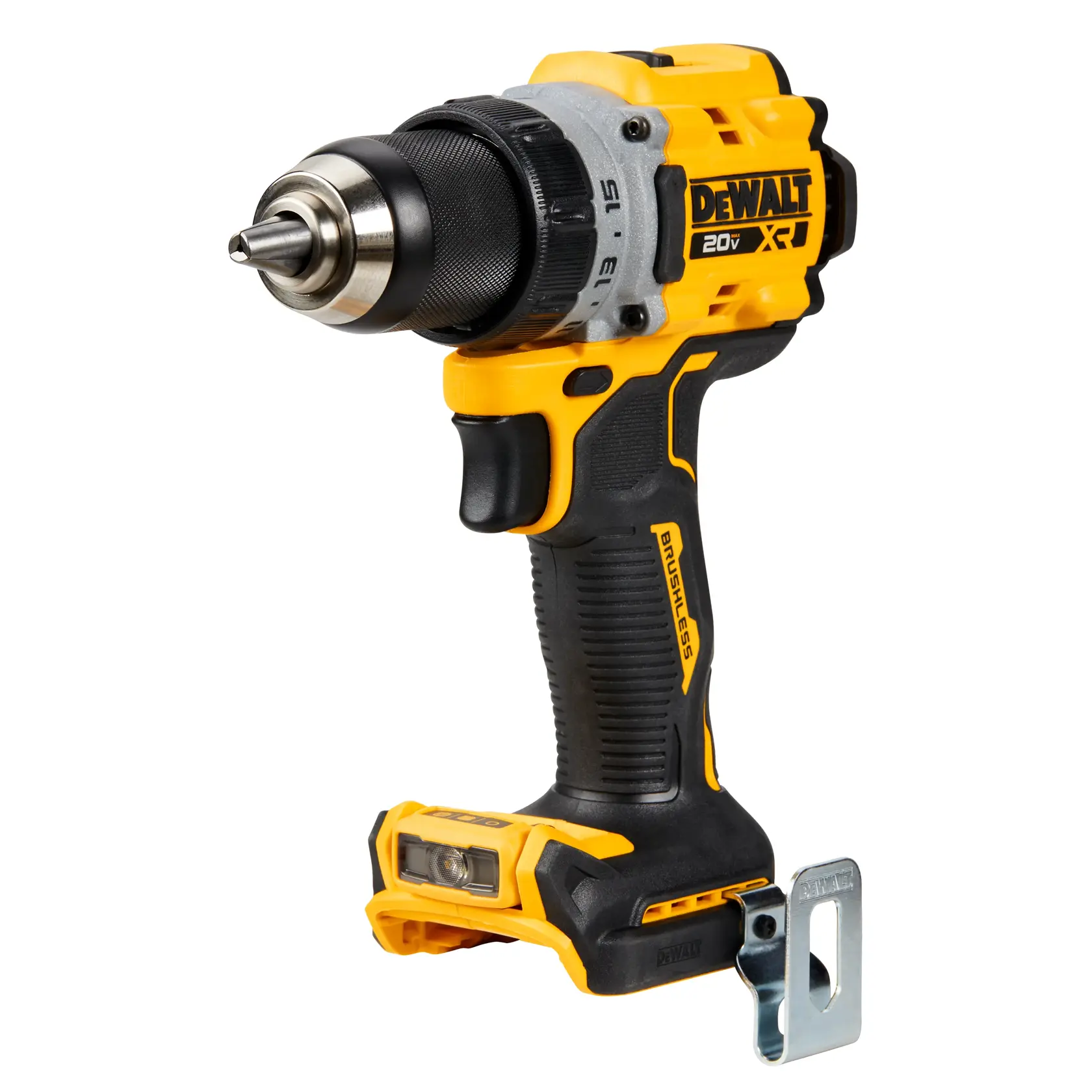

DeWalt DCD800B 20V MAX XR Compact.

The Gavler Review.

DeWalt DCD800B 20V MAX XR Compact Review: The Best Work Light Beats a Drill

The DeWalt DCD800B 20V MAX XR Compact ranks No. 6 on Gavler's Best Power Drills list with a score of 9.1 — the highest score on the list, earned by pairing a genuinely novel work light with drilling speed that independent testing confirmed matches DeWalt's own claims. Pro Tool Reviews put it plainly: "The DeWalt DCD805 and DCD800 drills feature an adjustable 3-position LED light. We've never seen this before, and it looks like a great feature." The catch is real, too — this is a heavier, pricier drill without the anti-kickback protection some competitors build in, which makes it a tool for people who drill a lot, not an occasional homeowner project.

What it is

The DCD800B is DeWalt's XR compact drill, distinct from the lighter-duty ATOMIC line — this one is built for output rather than minimum size. It runs two speed ranges, 0-650 and 0-2,000 RPM, through a 1/2-inch metal ratcheting chuck housed in a 6.37-inch head, half an inch shorter than the DCD791 it replaces. DeWalt claims up to 40 percent more Unit Watts Out than that predecessor, though it's worth understanding exactly what that claim does and doesn't mean: it's stated relative to the old model, conditioned on a specific battery (DCB205 or PowerStack), and DeWalt publishes no absolute output figure for the tool, so there's no independently checkable torque number attached to it.

The headline feature is the work light — a 3-position, 3-mode LED putting out up to 70 lumens, with a dedicated spotlight mode and a 20-minute automatic shutoff. It's a genuinely novel addition in a category where most drills bolt on a single fixed LED near the chuck and call it done.

In use

Independent bench testing tells a consistent story. DIY Gear Reviews clocked the drill at 648 RPM low and 2,046 RPM high with a contact tachometer — essentially matching DeWalt's 0-650/0-2,000 RPM claims — and measured an average of 2.3 seconds per half-inch hole bored, describing it this way: "The DCD800 drills incredibly fast when under heavy load... Critically for a contractor-grade drill, it sustains high RPMs throughout the hole depth and blasts out chips to avoid bogging down." Consumer Reports' lab testing of the DCD800D2 kit variant (paired with two 2.0Ah batteries) reached a similar verdict, rating it "very fast at drilling holes and driving screws" and "powerful, capable of handling any size job," while flagging a real limitation for high-volume users: "moderately long run time per battery charge — may require changing batteries during a large job."

That work light earns its reputation in practical use, too. Three positions and three modes — including a spotlight setting — give it genuine versatility for angled work in cabinets, joist bays, or dim job sites, and the 20-minute shutoff keeps it from draining the battery if left on accidentally.

Strengths

The LED is the standout feature, full stop — Pro Tool Reviews' "we've never seen this before" isn't hyperbole; adjustable-position work lights simply aren't common on drills at any price. The measured drilling performance backs up DeWalt's marketing rather than undercutting it, which isn't always the case with manufacturer power claims, and the sustained RPM under load that DIY Gear Reviews documented — rather than bogging down deep into a cut — is exactly the behavior that separates a contractor-grade tool from a homeowner-grade one. The shortened 6.37-inch head length, half an inch trimmer than its DCD791 predecessor, also genuinely helps in tight installation spots.

The trade-offs — who should skip it

Two honest caveats keep this from being an unqualified recommendation for every buyer. First, weight: at roughly 2.84 to 2.95 lbs bare, it's noticeably heavier than the ATOMIC line, and DIY Gear Reviews reported real fatigue in repetitive use, writing that "the bulky weight does lead to muscle fatigue, as we experienced at several points running repetitive tests." Second, and more serious: there's no anti-kickback clutch. DIY Gear Reviews called this out directly, noting that "the DCD800 is exceptionally powerful, increasing the risk of wrist injuries when the drill bit binds up" — a safety feature some comparable Milwaukee drills include and this one doesn't.

Together, those two factors point toward a specific buyer profile: this is a tool for someone doing repeated, demanding drilling work who values speed and the work light enough to accept the weight and the missing kickback protection. A homeowner doing occasional light-duty projects will get less benefit from the extra power and more annoyance from the extra weight — the ATOMIC line or a lighter compact drill is the better fit for that use case.

How it compares

On the same Gavler list, the Milwaukee M12 FUEL 2503-20 sits one rank below at No. 7, and it solves a completely different problem: at a Milwaukee-stated 2.3 lbs bare, it's built for reaching into joist bays and cabinet carcasses where the DCD800B's extra bulk and power are actively unhelpful. But TechGearLab's testing found its ceiling fast — it "stalled repeatedly driving a 5-inch, 1/2-inch lag bolt," and a 2.0Ah battery pack managed only four full drill-and-drive cycles against ten for the best 18V tools. TechGearLab's own recommendation: "Unless you need a small drill for tight spots, we think the M18 Fuel is the wiser purchase for various jobs." That's essentially the mirror image of the DCD800B's trade-off — the Milwaukee wins on access and weight, the DeWalt wins on raw power, speed, and runtime.

The Gavler verdict

The DeWalt DCD800B earns the top score on Gavler's power drill list because its two headline claims — the best work light in the class and drilling speed that matches the marketing — both hold up under independent scrutiny. Pro Tool Reviews' assessment of the LED and DIY Gear Reviews' measured 648/2,046 RPM figures aren't manufacturer talking points; they're hands-on findings. But this is a drill for buyers who'll use that power regularly and can live with nearly 3 lbs of bare-tool weight and the absence of anti-kickback protection that DIY Gear Reviews flagged as a genuine wrist-injury risk. Buy it as a pro's tool, not a casual homeowner's first drill.

Common Questions

Is the DeWalt DCD800B worth it in 2026?

At $310, it scores 9.1 on Gavler's Best Power Drills list, the highest-rated tool on that list. Pro Tool Reviews called its adjustable LED something they'd 'never seen before,' and independent testing by DIY Gear Reviews confirmed it drills as fast as DeWalt claims. It's a pro's drill worth the price, not a casual homeowner's impulse buy.

How much torque does the DeWalt DCD800B actually have?

DeWalt doesn't publish an absolute torque or Unit Watts Out figure for this model — only a relative claim of up to 40% more UWO than its DCD791B predecessor, conditioned on using a DCB205 or PowerStack battery. Any specific in-lb torque number circulating online for this drill is unsourced.

Does the DeWalt DCD800B have anti-kickback protection?

No. DIY Gear Reviews flagged this directly as a real omission, noting the drill's strength 'increases the risk of wrist injuries when the drill bit binds up' — a feature some comparable Milwaukee drills include.
